RF-015; Panasonic, (ID = 86186) Radio
RF-015; Panasonic, (ID = 86184) Radio RF-015; Panasonic, (ID = 262585) Radio
RF-015; Panasonic, (ID = 942852) Radio RF-015; Panasonic, (ID = 942853) Radio
RF-015; Panasonic, (ID = 942854) Radio RF-015; Panasonic, (ID = 1267394) Radio
RF-015; Panasonic, (ID = 1349127) Radio RF-015; Panasonic, (ID = 1883060) Radio
Use red slider bar for more.
RF-015; Panasonic, (ID = 86184) Radio

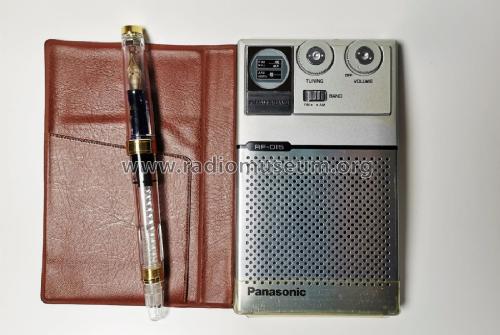

Panasonic,: RF-015 [Radio] ID = 86184 933x683

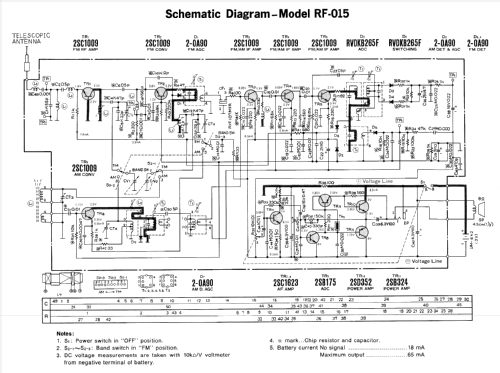

Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-015, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1977/1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out 0.12 W (unknown quality)
from Radiomuseum.org Model: RF-015 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 127 x 16 mm / 3 x 5 x 0.6 inch
Notes sehr flaches Gerät, aufgebaut in SMD-Technik. Thermoplastchassis mit Aluminiumabdeckungen. Auch unter National und National Panasonic vertrieben.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Source of data Handbuch VDRG 1977/1978
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Johann Schönauer. See "Data change" for further contributors.
