For model RF-1110 LBE, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Kaunas Lithuania

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: RF-1110 LBE - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)

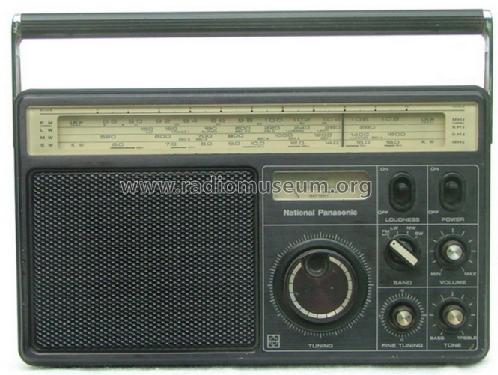

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 155 x 80 mm / 10.4 x 6.1 x 3.1 inch

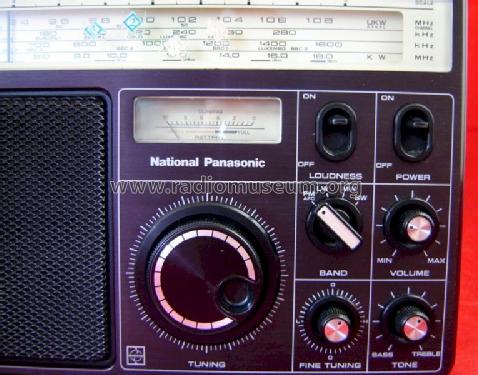

Notes Tuning/battery indicator. Local/DX and radio/phono switch. Fine tuning and loudness control.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Collectors' prices
Mentioned in - - Data from my own collection

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
