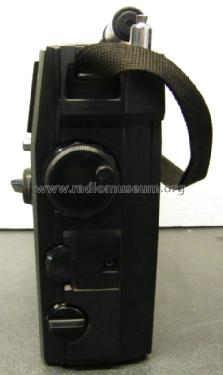

National Panasonic GX600 5 Band RF-1150
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78619

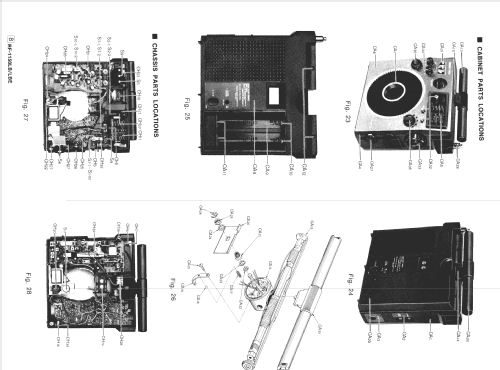

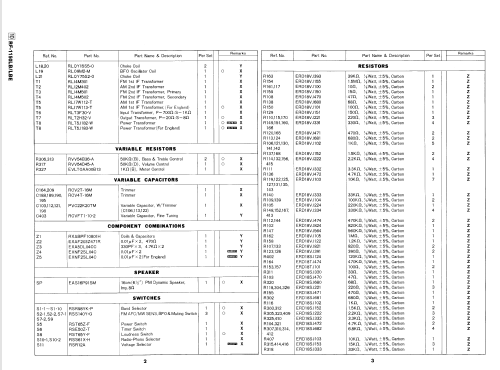

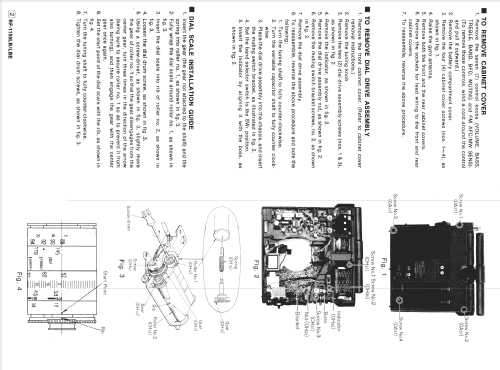

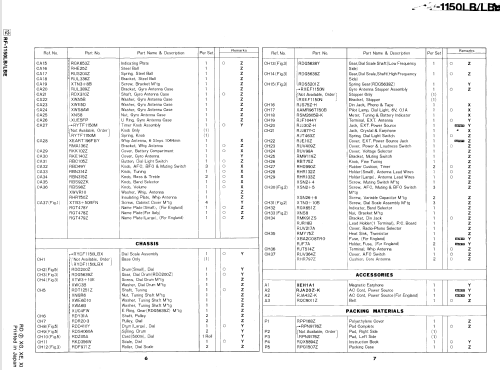

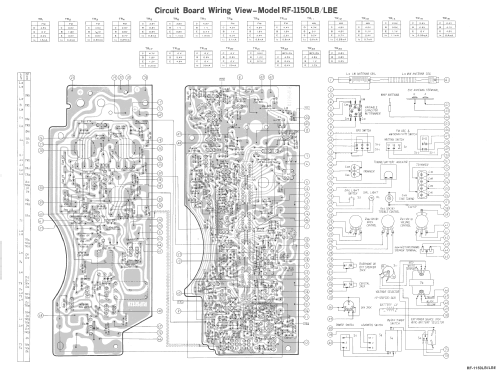

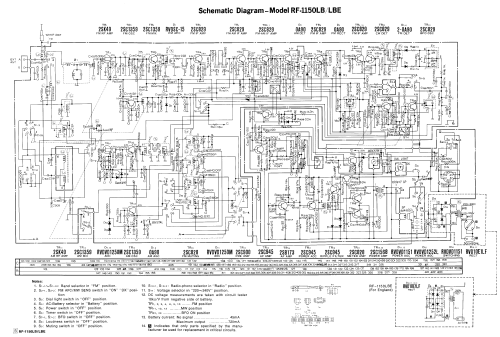

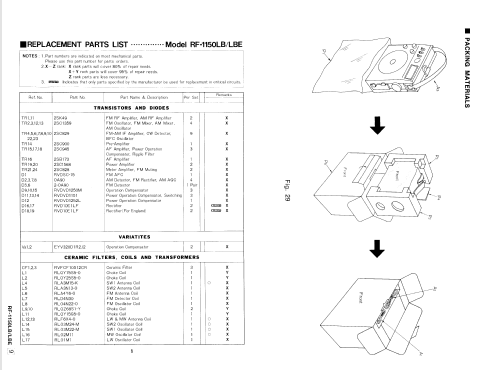

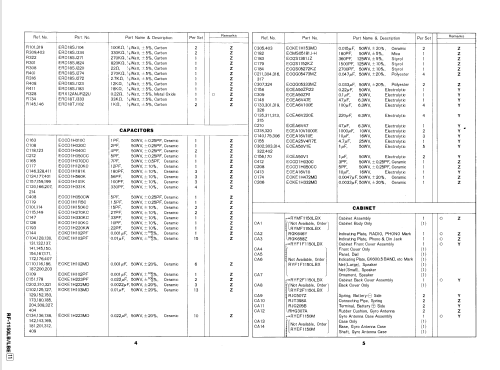

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic GX600 5 Band RF-1150 - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 246 x 237 x 100 mm / 9.7 x 9.3 x 3.9 inch
- Notes
- National Panasonic GX-600, RF-1150, 5 Band;

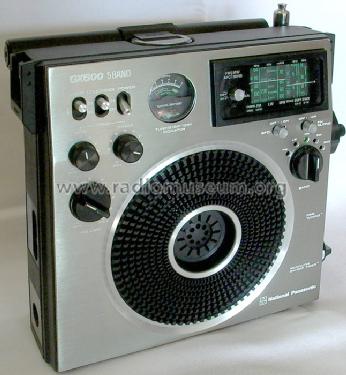

Two times SW, Tuning/batt. indicator meter, tone controls, loudness, scale light, BFO, fine tuning,

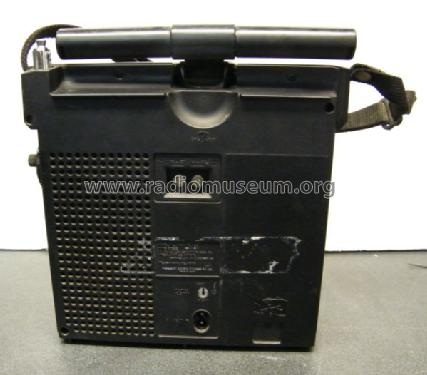

turnable ferrite bar antenna on top,
Note: There is a "National Cougar 115 RF-1150" japanese domestic version as well as the international "Panasonic RF-1150" each with a different coverage known.

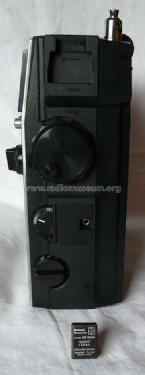

Only this version has three switches on top left front - all others just two!. An der rechten Seite befindet sich ein Steckplatz für Quarze mit Festfrequenzen, ich selbst besitze einen solchen Quarz mit der Frequenz 6,090MHz. Damit lassen sich im SW-Bereich Stationen quarzstabil empfangen; die Handabstimmung ist dann unwirksam. Wird dieser Quarz wieder entfernt, ist wieder die Handabstimmung aktiv.
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Johann Schönauer. See "Data change" for further contributors.
