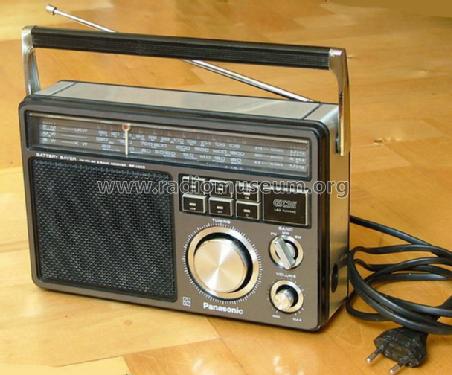

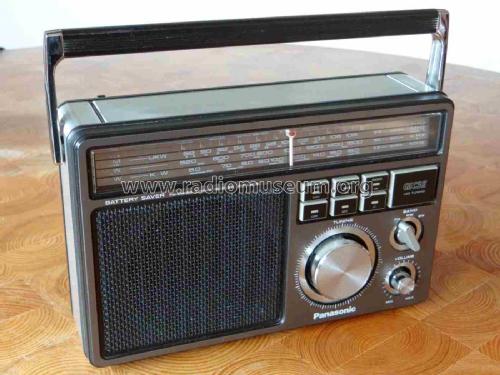

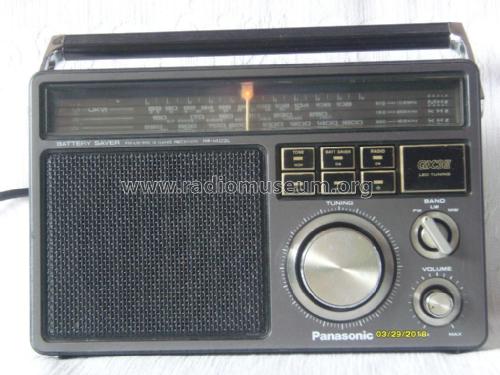

FM-MW-SW 3-Band Receiver RF-1403JBS

FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 2241706) Radio FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 2241707) Radio
FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 2241708) Radio FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 651512) Radio
FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 651510) Radio FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 651511) Radio
FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 1484394) Radio FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 1656137) Radio
FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 1656138) Radio FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 1656139) Radio
Use red slider bar for more.
FM-MW-SW 3-Band Receiver RF-1403JBS; Panasonic, (ID = 2241706) Radio
Panasonic,: FM-MW-SW 3-Band Receiver RF-1403JBS [Radio] ID = 2241706 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-MW-SW 3-Band Receiver RF-1403JBS, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1981–1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details

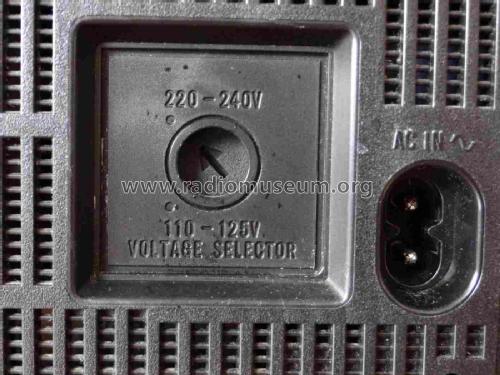

Power type and voltage Line / Batteries (any type) / 110-125; 220-240 / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: FM-MW-SW 3-Band Receiver RF-1403JBS - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 236 x 152 x 73 mm / 9.3 x 6 x 2.9 inch
Notes 1 IC für AM/FM-ZF, UKW 87,5-108 MHz, MW 520-1610 KHz, KW 5,9-18 KHz.
Ferritstab für MW, Stabantenne für UKW/KW, LED- Tuning auf dem Abstimmzeiger, Gegentaktendstufe mit Ausgangstrafo,
Betrieb mit eingebautem Netzteil oder Batterie (3xLR14), 8 Ohm Lautsprecher-Anschluss, Plastik-Gehäuse mit Aluminium und Tragegriff.
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Mentioned in - - Manufacturers Literature (Panasonic 1981-82 and 1982-83 catalogues)

Model page created by Armin Klischat † 2.9.13. See "Data change" for further contributors.
