2-Way Speaker/FM-LW-MW-SW 4-Band Receiver - GX10II RF-1410 LBS

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174863

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-125; 220-240 / D: 5 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 2-Way Speaker/FM-LW-MW-SW 4-Band Receiver - GX10II RF-1410 LBS - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 289 x 177 x 80 mm / 11.4 x 7 x 3.1 inch

• Notes

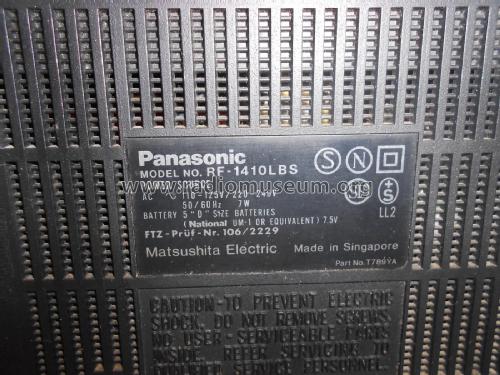

• Panasonic Rf-1410 LBS: portable radio, 5 step LED signal strength display, two way speaker system, similar to RF-1405 LBS set. FTZ-Prüf-Nr. 106/2229

  See also Panasonic RF-1410LBE

  Made in Singapore

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
