Panasonic Radar Matic RF-2000

Panasonic Radar Matic RF-2000; Panasonic, (ID = 473470) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 473471) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 473472) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 473473) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732153) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732154) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732155) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732156) Radio

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732157) Radio

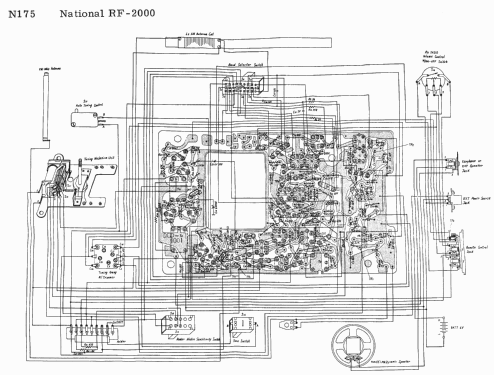

Panasonic Radar Matic RF-2000; Panasonic, (ID = 1732158) Radio
Panasonic Radar Matic RF-2000; Panasonic, (ID = 1672701) Radio Panasonic Radar Matic RF-2000; Panasonic, (ID = 108621) Radio
Panasonic Radar Matic RF-2000; Panasonic, (ID = 108620) Radio Panasonic Radar Matic RF-2000; Panasonic, (ID = 678667) Radio
Panasonic Radar Matic RF-2000; Panasonic, (ID = 210499) Radio Panasonic Radar Matic RF-2000; Panasonic, (ID = 678666) Radio
Panasonic Radar Matic RF-2000; Panasonic, (ID = 678668) Radio Panasonic Radar Matic RF-2000; Panasonic, (ID = 761007) Radio
Use red slider bar for more.
Panasonic Radar Matic RF-2000; Panasonic, (ID = 1672701) Radio
Panasonic,: Panasonic Radar Matic RF-2000 [Radio] ID = 1672701 1400x1340
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic Radar Matic RF-2000, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: 2SA377 2SA377 2SA70 2SA70 2SA70 2SA102 2SB175 2SB176 2SB173 2SB175 2SB176 2SB176 SC-15 OA90 OA79 OA70
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Batteries / addl. power jack / C: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.3 W (0.5 W max.)
from Radiomuseum.org Model: Panasonic Radar Matic RF-2000 - Panasonic, Matsushita,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 246 x 140 x 67 mm / 9.7 x 5.5 x 2.6 inch
Notes

Band selector switch, relay switch, Radar Matic sensitivity switch, H/L tone switch, power source switch, ON/OFF auto tuning control switch.

Weight with batteries.

3 auxiliary circuits including one piezo resonator for AM automatic tuning.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Mentioned in Funkschau (1967 Heft 19 Seite 1601/621ff)
