Panasonic GX700 RF-3700 SW

Panasonic GX700 RF-3700; Panasonic, (ID = 1983901) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983902) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983903) Radio

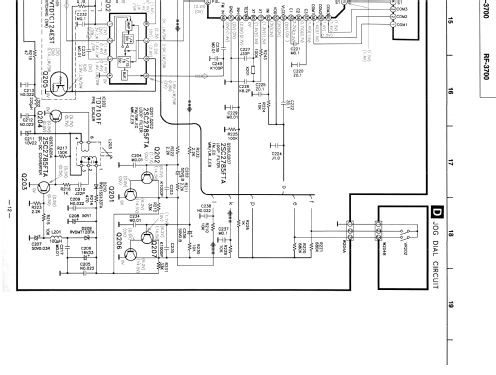

Panasonic GX700 RF-3700; Panasonic, (ID = 1983904) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983905) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983906) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983907) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983908) Radio

Panasonic GX700 RF-3700; Panasonic, (ID = 1983909) Radio

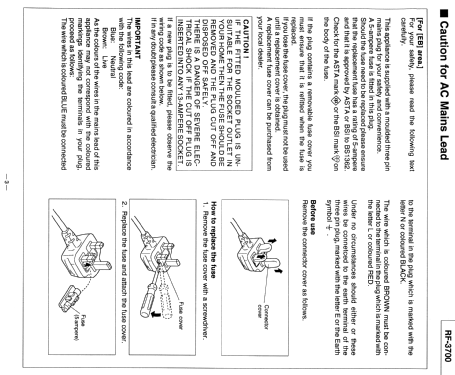

Panasonic GX700 RF-3700; Panasonic, (ID = 1983910) Radio

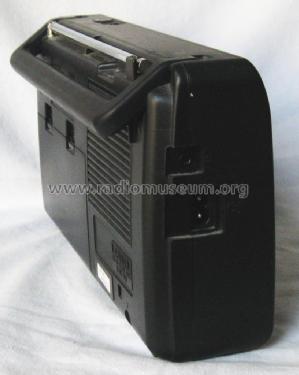

Panasonic GX700 RF-3700; Panasonic, (ID = 2321159) Radio Panasonic GX700 RF-3700; Panasonic, (ID = 2321160) Radio
Panasonic GX700 RF-3700; Panasonic, (ID = 2321161) Radio Panasonic GX700 RF-3700; Panasonic, (ID = 365050) Radio
Panasonic GX700 RF-3700; Panasonic, (ID = 365049) Radio Panasonic GX700 RF-3700; Panasonic, (ID = 1066955) Radio
Panasonic GX700 RF-3700; Panasonic, (ID = 1066956) Radio Panasonic GX700 RF-3700; Panasonic, (ID = 1301577) Radio

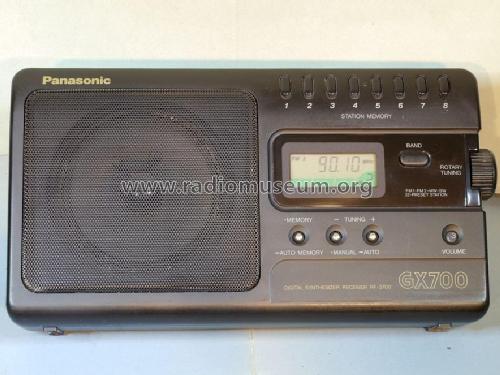

Panasonic GX700 RF-3700; Panasonic, (ID = 1622660) Radio Panasonic GX700 RF-3700; Panasonic, (ID = 1792505) Radio
Use red slider bar for more.
Panasonic GX700 RF-3700; Panasonic, (ID = 2321159) Radio

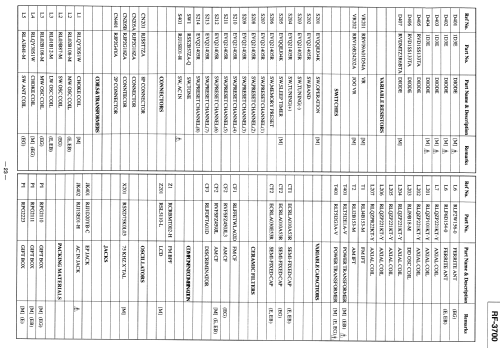

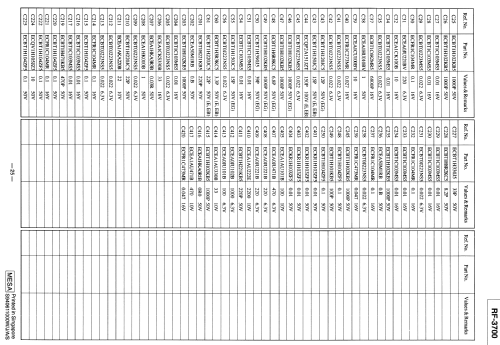

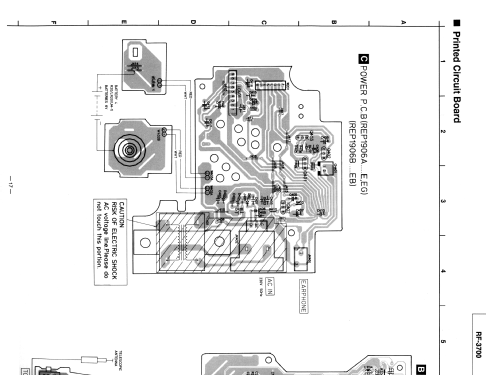

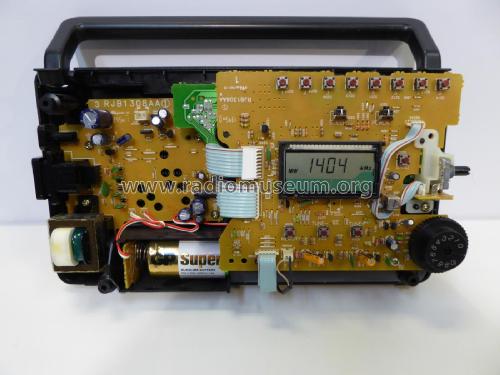

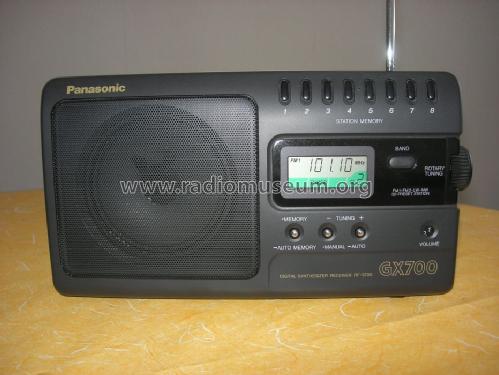

Panasonic,: Panasonic GX700 RF-3700 [Radio] ID = 2321159 966x1024

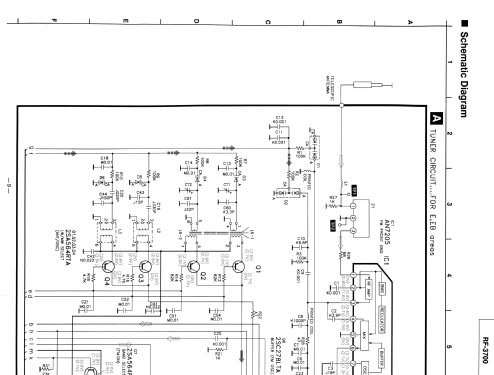

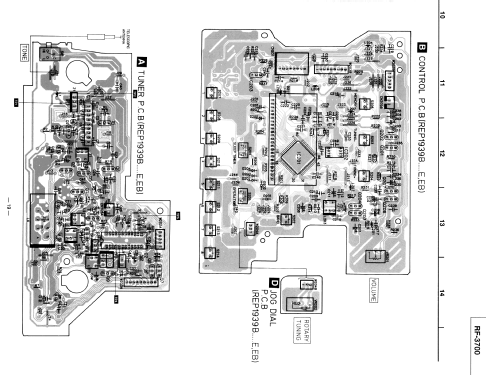

Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic GX700 RF-3700 SW, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1994 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Panasonic GX700 RF-3700 [SW] - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 274 x 149 x 88 mm / 10.8 x 5.9 x 3.5 inch
Notes

3 Integrated circuits.
Digital synthesizer receiver:
FM 87,5 - 108 MHz
MW 522 - 1611 kHz
SW 5,9 - 18 MHz.
Frequency step:
FM 50 kHz; MW 9 kHz; SW 5 kHz.
Pre-selection of 32 stations, 16 FM, 8 MW and 8 SW. Tuning with knob or buttons + and -; tone high / low. Snooze. Headset jack.

See also version with LW (144 - 288 kHz)  in stead of SW: Panasonic GX700 RF-3700 [LW].

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Source of data -- Original-techn. papers.

Model page created by Johann Schönauer. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2573 models, 2321 with images and 497 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
