RF-435

RF-435; Panasonic, (ID = 1526135) Radio RF-435; Panasonic, (ID = 1526138) Radio
Use red slider bar for more.
RF-435; Panasonic, (ID = 1526135) Radio
Panasonic,: RF-435 [Radio] ID = 1526135 933x998
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-435, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

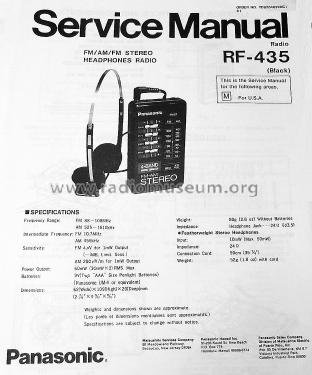

Picture from Service Manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1986 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker - For headphones or amp.
Power out 0.06 W (undistorted)
from Radiomuseum.org Model: RF-435 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 62 x 109 x 20 mm / 2.4 x 4.3 x 0.8 inch
Notes

Panasonic FM/AM/FM Stereo Headphones Radio Model RF-435.
Tuning Range: FM 88 -108 MHz, AM 525 - 1610 kHz
4-Band Graphic Equalizer, Headphone Jack.


Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
