RF-507

RF-507; Panasonic, (ID = 2052115) Radio RF-507; Panasonic, (ID = 2052120) Radio
RF-507; Panasonic, (ID = 2052123) Radio RF-507; Panasonic, (ID = 2052121) Radio
RF-507; Panasonic, (ID = 2052119) Radio RF-507; Panasonic, (ID = 2052124) Radio
RF-507; Panasonic, (ID = 2052117) Radio RF-507; Panasonic, (ID = 2052116) Radio
RF-507; Panasonic, (ID = 2137160) Radio RF-507; Panasonic, (ID = 2137161) Radio
Use red slider bar for more.
RF-507; Panasonic, (ID = 2052115) Radio
Panasonic,: RF-507 [Radio] ID = 2052115 1400x1544
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-507, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SC1359 2SC1359 2SC1359 2SC828 2SC828 2SC2001 2SC2001 AN7220
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 4 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details

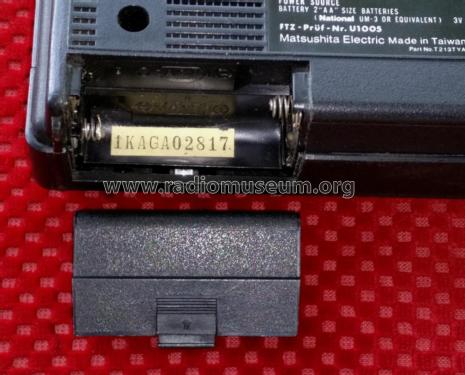

Power type and voltage Dry Batteries / AA: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.24 W (unknown quality)
from Radiomuseum.org Model: RF-507 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 168 x 102 x 45 mm / 6.6 x 4 x 1.8 inch
Notes

Das UKW-Eingangsteil hat einen getrennten Oszillator und im ZF-Teil ist ein keramisches  Filter vorhanden. Die Ohrhörerbuchse kann auch für einen ext. Lautsprecher mit min. 8 Ohm benutzt werden.

Net weight (2.2 lb = 1 kg) 0.140 kg / 0 lb 4.9 oz (0.308 lb)

Model page created by Karl-Heinz Entrich. See "Data change" for further contributors.
