RF-541

RF-541; Panasonic, (ID = 1545086) Radio RF-541; Panasonic, (ID = 1545087) Radio
Use red slider bar for more.

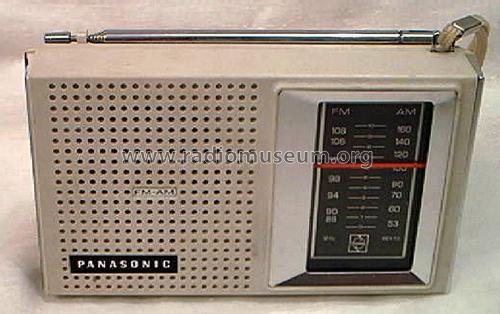

RF-541; Panasonic, (ID = 1545086) Radio
Panasonic,: RF-541 [Radio] ID = 1545086 933x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-541, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Picture Courtesy Of EBAY User: ncautoman57

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Powered by external power supply or a main unit. / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RF-541 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 3 x 1 inch / 133 x 76 x 25 mm
Notes

Panasonic Portable AM-FM Receiver Model RF-541.

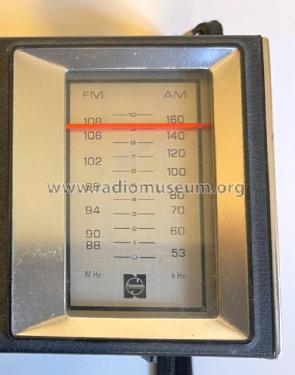

Tuning Range: FM 87,5 - 108 MHz, AM 525 - 1605 kHz
Telescopic antenna, Wrist Strap
Made in Japan.

Model page created by Franz Scharner. See "Data change" for further contributors.
