RF-564

RF-564; Panasonic, (ID = 1493468) Radio RF-564; Panasonic, (ID = 1420969) Radio
RF-564; Panasonic, (ID = 1420970) Radio RF-564; Panasonic, (ID = 1493470) Radio
RF-564; Panasonic, (ID = 1493471) Radio RF-564; Panasonic, (ID = 1420972) Radio
RF-564; Panasonic, (ID = 1420971) Radio RF-564; Panasonic, (ID = 578955) Radio
Use red slider bar for more.
RF-564; Panasonic, (ID = 1493468) Radio
Panasonic,: RF-564 [Radio] ID = 1493468 933x1209
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-564, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
By Courtesy Of EBAY User: kolzig99

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

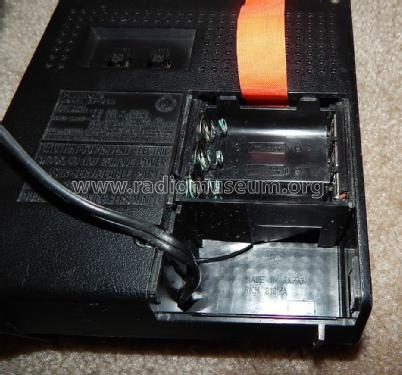

Power type and voltage Line / Batteries (any type) / 120 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RF-564 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 6 x 7 x 2.5 inch / 152 x 178 x 64 mm
Notes

Panasonic RF-564 FM-AM Portable Radio AC Battery;

Tuning Range: AM 525 - 1605 kHz, FM 87,5 - 108 MHz.
Power Consumption 3 Watts.
Made in Japan.

Model page created by a member from A. See "Data change" for further contributors.
