RF-567BA

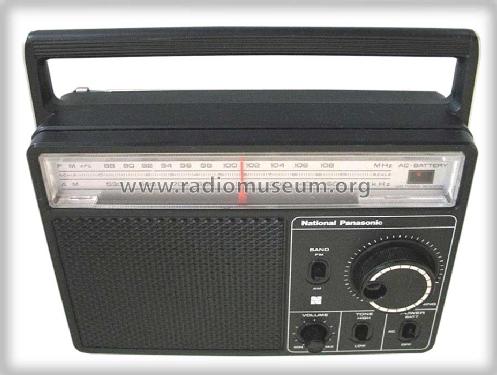

RF-567BA; Panasonic, (ID = 495755) Radio RF-567BA; Panasonic, (ID = 495758) Radio
RF-567BA; Panasonic, (ID = 495756) Radio RF-567BA; Panasonic, (ID = 491512) Radio
RF-567BA; Panasonic, (ID = 495754) Radio RF-567BA; Panasonic, (ID = 495757) Radio
Use red slider bar for more.
RF-567BA; Panasonic, (ID = 495755) Radio
Panasonic,: RF-567BA [Radio] ID = 495755 713x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-567BA, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay Nr. 360080489089 Bild bearbeitet.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RF-567BA - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 247 x 200 x 65 mm / 9.7 x 7.9 x 2.6 inch
Notes National Panasonic RF-567BA;
AFC, tone control, single LED tuning/batt. indicator.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
