RF-619

RF-619; Panasonic, (ID = 1477652) Radio RF-619; Panasonic, (ID = 1477653) Radio
RF-619; Panasonic, (ID = 1477654) Radio RF-619; Panasonic, (ID = 1395595) Radio
RF-619; Panasonic, (ID = 1395596) Radio RF-619; Panasonic, (ID = 1395599) Radio
RF-619; Panasonic, (ID = 1395598) Radio RF-619; Panasonic, (ID = 588430) Radio
RF-619; Panasonic, (ID = 1804067) Radio
Use red slider bar for more.
RF-619; Panasonic, (ID = 1477652) Radio

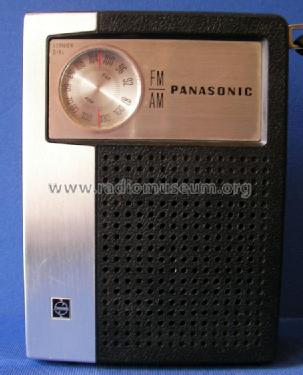

Panasonic,: RF-619 [Radio] ID = 1477652 759x938
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-619, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RF-619 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 3.25 x 4.5 x 0 inch / 83 x 114 x 0 mm
Notes Panasonic RF-619;
FM: 87 - 108 MHz, AM: 525 - 1606 KHz, earphones jack, vernier dial, ~18.5" telescopic antenna, front chrome.

Model page created by a member from A. See "Data change" for further contributors.
