Travel Pal RF-626

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107749

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC429 2SC185 2SC184 2SC469 2SC469 2SB173 2SB175 2SB172 2SB172 OA90 OA90 OA90 OA90 1S1211 1S1211

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Travel Pal RF-626 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 77 x 112 x 37 mm / 3 x 4.4 x 1.5 inch

• Notes

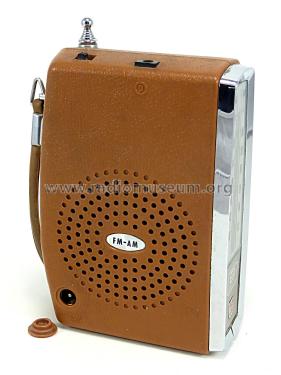

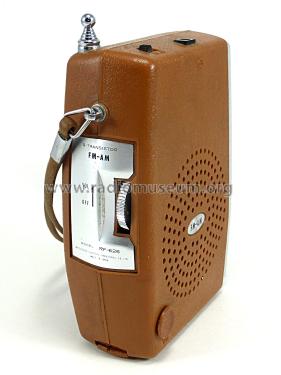

• Made in Japan.  Travel Pal RF-626 is the larger and companion version of Panasonic Gadabout R-1326. Battery compartment door is at the bottom of cabinet.   There is a small plug for 9 volt external power.  Leatherette (plastic) cabinet designed to look somewhat like an instamatic camera of the era.

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy marzo 1971.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
