• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107753

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-220 or AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

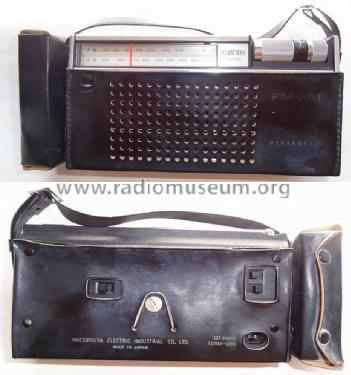

• Model: AC-Battery Solid State RF-728 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8.13 x 4.13 x 1.83 inch / 207 x 105 x 46 mm

• Notes
• Panasonic RF-728; dial light, Hi & Lo tone switch, AFC switch, earphone jack.

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
