GX280 FM-MW-LW 3 Band RF-879

GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 110275) Radio GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 207032) Radio
GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 207033) Radio GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 207036) Radio

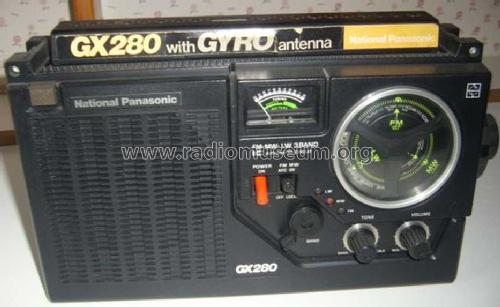

GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 763041) Radio
Use red slider bar for more.
GX280 FM-MW-LW 3 Band RF-879; Panasonic, (ID = 110275) Radio
Panasonic,: GX280 FM-MW-LW 3 Band RF-879 [Radio] ID = 110275 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model GX280 FM-MW-LW 3 Band RF-879, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Other, details in remarks or not known. / 6 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: GX280 FM-MW-LW 3 Band RF-879 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 244 x 135 x 70 mm / 9.6 x 5.3 x 2.8 inch
Notes National - Panasonic GX280, FM-MW-LW 3 Band, RF-879 (probably with a suffix)
Batt./tuning meter, AFC, MW-DX switch, turnable ferrite bar antenna on top, IC equipped, dial light, tone control, special designed cycle scale. Eine integrierte Schaltung, originelle Skala , drehbare Antenne, military Look.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data -- Original-techn. papers.

Model page created by Johann Schönauer. See "Data change" for further contributors.
