RF-893L

RF-893L; Panasonic, (ID = 485638) Car Radio
RF-893L; Panasonic, (ID = 485639) Car Radio RF-893L; Panasonic, (ID = 2160474) Car Radio

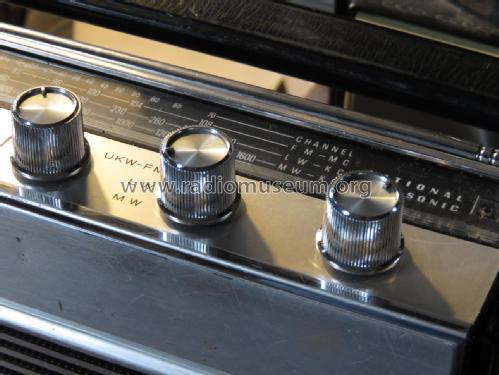

RF-893L; Panasonic, (ID = 2160475) Car Radio RF-893L; Panasonic, (ID = 2160476) Car Radio
Use red slider bar for more.
RF-893L; Panasonic, (ID = 485639) Car Radio
Panasonic,: RF-893L [Car Radio] ID = 485639 860x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF-893L, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 9: 2SC645 2SC645 2SC184 2SC469 2SC469 2SB173 2SB175 2SB324 2SB324
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: RF-893L - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 158 x 67 mm / 10.4 x 6.2 x 2.6 inch
Notes Einsatz im KFZ mit Autohalterung (Car Bracket) RD-883CA.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data -- Original-techn. papers.

Model page created by Giovanni Cucuzzella. See "Data change" for further contributors.
