Phase-Locked-Loop Synthesizer RF-9000

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389324) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389325) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389326) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389327) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389328) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389329) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389330) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389331) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389332) Radio

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 2389333) Radio
Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 305493) Radio Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 319183) Radio
Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 670780) Radio Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 670781) Radio
Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 670782) Radio Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 670783) Radio
Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 670784) Radio Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 1610247) Radio

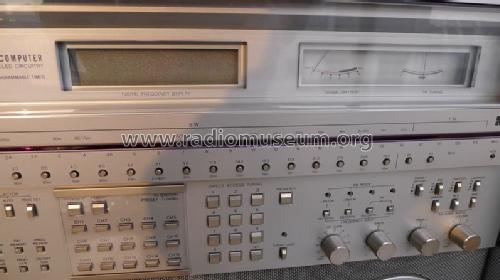

Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 1610248) Radio Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 1610249) Radio
Use red slider bar for more.
Phase-Locked-Loop Synthesizer RF-9000; Panasonic, (ID = 305493) Radio
Panasonic,: Phase-Locked-Loop Synthesizer RF-9000 [Radio] ID = 305493 800x574
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phase-Locked-Loop Synthesizer RF-9000, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 161:
Main principle Superhet, double/triple conversion; ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 12×1,5 plus backup 2 x 1.5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Phase-Locked-Loop Synthesizer RF-9000 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 520 x 362 x 206 mm / 20.5 x 14.3 x 8.1 inch
Notes The National-Panasonic model RF9000 has 39 integrated circuits, Timer, backup battery: 2×1,5 V. Features include: ¼" Headphone Jack, S-Tune Meter, Clock, 15 Memories, Lock, ANL, Bass, Treble, Carry Handle, Record Jack, Two Tuning Rates, Clock, Dial Lamp, Dial Lamp Switch, RF Gain, Keypad, Scanning, Aux. Audio Input Jack, 12/24 Hour Clock, Four Event Timer, External Antenna Input, Loudness, Two Speakers 7x5" & 2.6". The RF-9000 operates from: 100~110/115~127/200~220/230~250 VAC or eight D cells or 12 VDC. Also requires two AA cells as backup for the clock. It measures 20.6 x 14.3 x 8.2" and weights 45 Lbs.
Net weight (2.2 lb = 1 kg) 20.3 kg / 44 lb 11.4 oz (44.714 lb)
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Johann Schönauer. See "Data change" for further contributors.
