RQ-206S

RQ-206S; Panasonic, (ID = 485661) R-Player

RQ-206S; Panasonic, (ID = 485728) R-Player
RQ-206S; Panasonic, (ID = 2310117) R-Player RQ-206S; Panasonic, (ID = 2310118) R-Player
RQ-206S; Panasonic, (ID = 2310119) R-Player RQ-206S; Panasonic, (ID = 2310120) R-Player
RQ-206S; Panasonic, (ID = 2310121) R-Player RQ-206S; Panasonic, (ID = 2310132) R-Player
RQ-206S; Panasonic, (ID = 485664) R-Player RQ-206S; Panasonic, (ID = 1079109) R-Player
Use red slider bar for more.

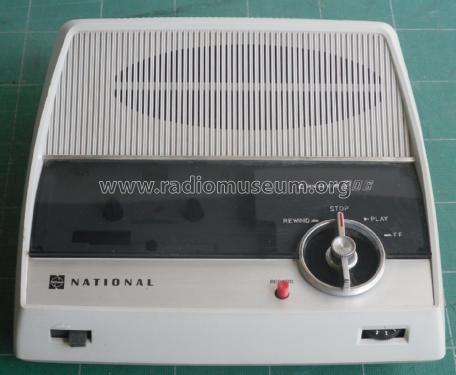

RQ-206S; Panasonic, (ID = 2310117) R-Player
Panasonic,: RQ-206S [R-Player] ID = 2310117 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-206S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: 2SB172 2SB173 2SB173 2SB175 2SB175 2SB178 2SB178
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220; 240 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: RQ-206S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, slant panel.
Dimensions (WHD) 225 x 100 x 235 mm / 8.9 x 3.9 x 9.3 inch
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data -- Original-techn. papers.

Model page created by Giovanni Cucuzzella. See "Data change" for further contributors.
