• Year
  • 1967 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 180847

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RQ-300S [UK version] - Panasonic, Matsushita,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • 2 speed, 2 track tape recorder. Fitted with 3 pin UK mains plug.
  • Source of data

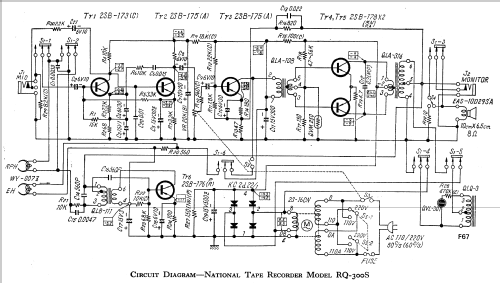

  • -- Schematic
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
