RQ-434S

RQ-434S; Panasonic, (ID = 2292634) Radio RQ-434S; Panasonic, (ID = 2292627) Radio
RQ-434S; Panasonic, (ID = 2292633) Radio RQ-434S; Panasonic, (ID = 2292637) Radio
RQ-434S; Panasonic, (ID = 2292636) Radio RQ-434S; Panasonic, (ID = 2292635) Radio
RQ-434S; Panasonic, (ID = 2292628) Radio RQ-434S; Panasonic, (ID = 2292629) Radio
RQ-434S; Panasonic, (ID = 2292631) Radio RQ-434S; Panasonic, (ID = 1895525) Radio
Use red slider bar for more.
RQ-434S; Panasonic, (ID = 2292634) Radio
Panasonic,: RQ-434S [Radio] ID = 2292634 1400x1379
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-434S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány (radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player

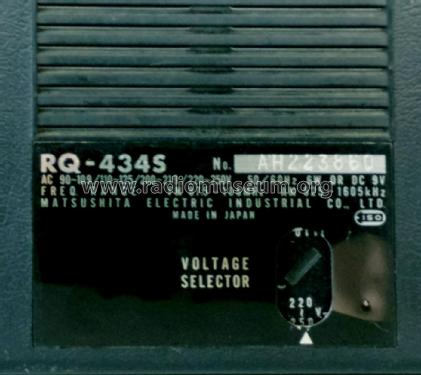

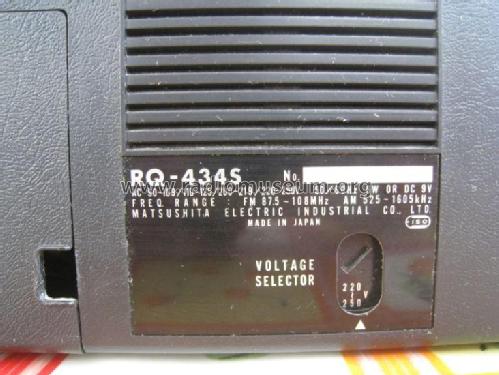

Power type and voltage Line / Batteries (any type) / AC: 90-109; 110-125; 200-219; 220-250 / DC: 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 3.5 W (undistorted)
from Radiomuseum.org Model: RQ-434S - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 205 x 75 mm / 11 x 8.1 x 3 inch
Notes

Controllo volume, tono condenser microfone incorporato

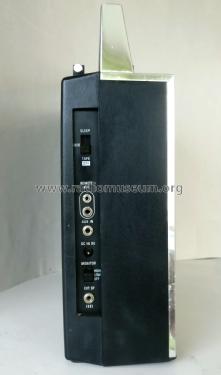

presa per microfono esterno con interruttore
presa aux in
commutatore monitor hight-low-off
presa per altoparlante esterno 8 ohm
presa per alimentazione esterna 9 volt
consumo 6 w 50/60 Hz

Freq. range: FM: 87,5 - 108 MHz - AM: 525-1605 kHz

made in Japan



Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
