FM/AM Radio Cassette 443 RQ-443S Multi Voltage Version FM/AM

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201364

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 50/60 Hz, 90-109; 110-125; 200-219; 220-250 / DC:6 / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/AM Radio Cassette 443 RQ-443S [Multi Voltage Version FM/AM] - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 286 x 165 x 80 mm / 11.3 x 6.5 x 3.1 inch

• Notes

• Specifiche su tensioni e frequenze di lavoro dell'apparecchio tratte dalla targa posta a tergo.

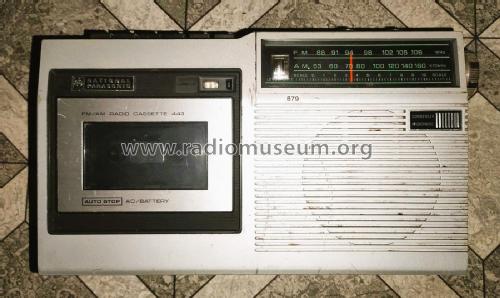

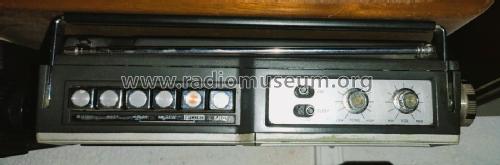

  National Panasonic RQ-443S FM/AM Radio Cassette 443

  Multi voltage FM/AM version.

  • FM: 87.5-108 MHz
  • AM: 535-1605 kHz

  See also Radio Cassette 443 RQ-443DS 240 volt version

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Author
• Model page created by Giovanni Scalavino. See "Data change" for further contributors.
