• Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220076

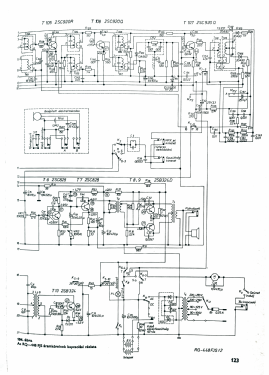

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 90-109; 110-125; 200-219; 220-250 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RQ-448 FJS - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 328 x 197 x 83 mm / 12.9 x 7.8 x 3.3 inch
  • Notes
  • National/Panasonic RQ-448 FJS;
    Probably OIRT FM. Signal meter. Earphones jack. MPX out. Aux Stereo in, DC in. Note the different country versions.
  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (1)
  • Csabai Dániel, Rádió-magnók szervízkönyve I.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
