RQ-454S

RQ-454S; Panasonic, (ID = 568888) Radio

RQ-454S; Panasonic, (ID = 568889) Radio
RQ-454S; Panasonic, (ID = 2241323) Radio RQ-454S; Panasonic, (ID = 2425559) Radio
RQ-454S; Panasonic, (ID = 2241324) Radio RQ-454S; Panasonic, (ID = 2241326) Radio
RQ-454S; Panasonic, (ID = 2241322) Radio RQ-454S; Panasonic, (ID = 2241321) Radio
RQ-454S; Panasonic, (ID = 2425560) Radio RQ-454S; Panasonic, (ID = 2241328) Radio
RQ-454S; Panasonic, (ID = 2241329) Radio RQ-454S; Panasonic, (ID = 726885) Radio
Use red slider bar for more.
RQ-454S; Panasonic, (ID = 2241323) Radio
Panasonic,: RQ-454S [Radio] ID = 2241323 933x1124
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-454S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 90-109; 110-125: 200-219; 220-250; 6; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (max.)
from Radiomuseum.org Model: RQ-454S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 259 x 242 x 98 mm / 10.2 x 9.5 x 3.9 inch
Notes

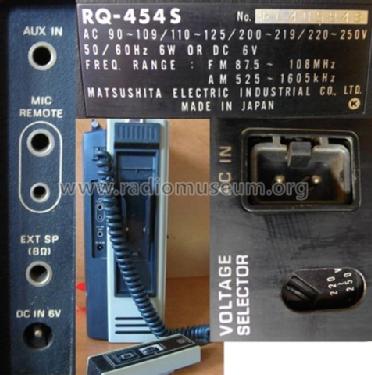

National Panasonic RQ-454S; Tuning/batt.-meter, tape sleep timer, tone control, tape counter, remote microphone type WM-2277N, AUX-in, ext. speaker, 2nd mic-in.

Technische Info:
kein Euro-Norm-Netzanschluss - Steck-Kupplung mit einer Nut (keine Doppel-Nut)
Abmessungen 10 x 14 mm.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Mentioned in Funkschau (15/1975, S.69)

Model page created by a member from A. See "Data change" for further contributors.
