RQ-506S

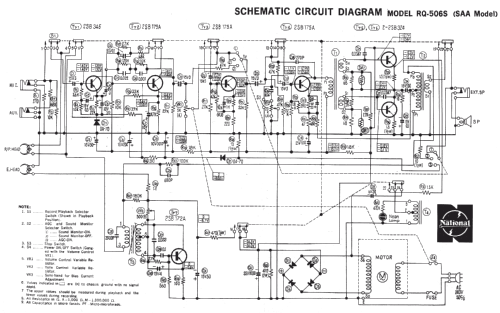

RQ-506S; Panasonic, (ID = 1057790) R-Player
RQ-506S; Panasonic, (ID = 914051) R-Player RQ-506S; Panasonic, (ID = 914052) R-Player
RQ-506S; Panasonic, (ID = 914053) R-Player RQ-506S; Panasonic, (ID = 914054) R-Player
Use red slider bar for more.
RQ-506S; Panasonic, (ID = 914051) R-Player
Panasonic,: RQ-506S [R-Player] ID = 914051 897x673
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-506S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: RQ-506S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 300 x 290 x 150 mm / 11.8 x 11.4 x 5.9 inch
Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)

Model page created by Adriano Scarpa. See "Data change" for further contributors.
