RQ-544SD

RQ-544SD; Panasonic, (ID = 720011) Radio RQ-544SD; Panasonic, (ID = 720007) Radio
RQ-544SD; Panasonic, (ID = 720009) Radio RQ-544SD; Panasonic, (ID = 720014) Radio

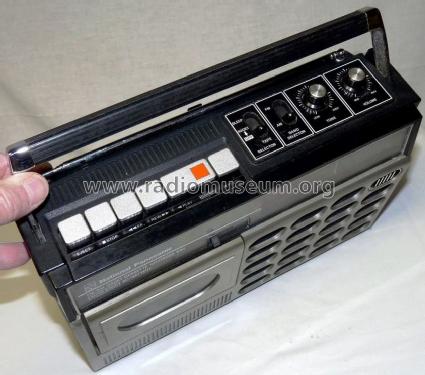

RQ-544SD; Panasonic, (ID = 720015) Radio RQ-544SD; Panasonic, (ID = 720016) Radio
Use red slider bar for more.
RQ-544SD; Panasonic, (ID = 720011) Radio
Panasonic,: RQ-544SD [Radio] ID = 720011 745x764
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-544SD, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: RQ-544SD - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 305 x 200 x 100 mm / 12 x 7.9 x 3.9 inch
Notes FM/AM Radio Cassette Recorder, Frequenzbereiche: FM 88-108 MHz, AM 525-1605 kHz, eingebautes Electretmikrofon, Eingänge für ext. Mikrofon/remote, Aux, Tonband/Plattenspieler über 5 pol Din Buchse, ext. Speaker/Kopfhörer, Nezgerät DC-6 Volt, Indicator Level/Batt., Tonregler, 4-tlg. Teleskopantenne 75 cm
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
