RS-776S

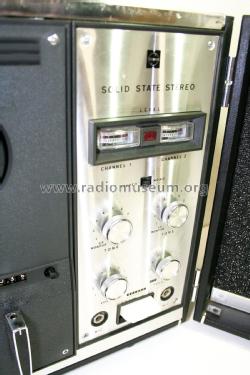

RS-776S; Panasonic, (ID = 2529699) R-Player RS-776S; Panasonic, (ID = 2529700) R-Player
RS-776S; Panasonic, (ID = 2529701) R-Player RS-776S; Panasonic, (ID = 2529702) R-Player
RS-776S; Panasonic, (ID = 2529704) R-Player RS-776S; Panasonic, (ID = 2529705) R-Player
RS-776S; Panasonic, (ID = 2529706) R-Player RS-776S; Panasonic, (ID = 2471237) R-Player
Use red slider bar for more.
RS-776S; Panasonic, (ID = 2529699) R-Player
Panasonic,: RS-776S [R-Player] ID = 2529699 1400x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model RS-776S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay au_202832230042

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1967–1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14: 2SB345 2SB345 2SB175 2SB175 2SB175 2SB175 2SB175 2SB175 2SB324 2SB324 2SB324 2SB324 2SB178 2SB178
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: RS-776S - Panasonic, Matsushita,
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 20 x 13.5 x 12 inch / 508 x 343 x 305 mm
Notes

National RS-776S Tape Recorder

  Features: two speeds (7½ and 3¾ ips). The two speakers form a lid to facilitate carrying. Automatic reverse or manual reverse by lever operation. Frquecy range 80-15000 c/s (Hz) at 7½ ips, 80-8000 c/s (Hz) at 3¾ ips. Two VU meters, pause lever, digital tape counter, 7" reel size. Max. output 2W per channel. Speakers, 2 x 6" PM dynamic. Sound on sound facilities. Complete with 7" recording tape, two microphones, connecting cords, empty reel, patch cords and splicing tape.

Net weight (2.2 lb = 1 kg) 41 lb 0 oz (41 lb) / 18.614 kg
Price in first year of sale 399.00 AUS $
Mentioned in Mingay's Price Service (Aug 1967 to Feb 1969)
Literature/Schematics (1) - - Manufacturers Literature (National Tape Recorder Service Handbook Page 36.)
Literature/Schematics (2) JR Tape Recorder Handbook, Page N31.

Model page created by Martin Kent. See "Data change" for further contributors.
