RS-805US

RS-805US; Panasonic, (ID = 1600062) R-Player RS-805US; Panasonic, (ID = 1600068) R-Player
RS-805US; Panasonic, (ID = 1600069) R-Player
Use red slider bar for more.
RS-805US; Panasonic, (ID = 1600062) R-Player
Panasonic,: RS-805US [R-Player] ID = 1600062 933x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model RS-805US, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
aus ebay-auktion 151089916781 (US) Es gab zwei Design-Varianten. Neben dieser auch eine mit hellgrauen Drucktasten, komplett silbernen Schiebereglern, aufgedrucktem Panasonic-Logo und schwarzem Zeiger des VU-Meters. Die hier gezeigte dürfte die spätere sein.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1975 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RS-805US - Panasonic, Matsushita,

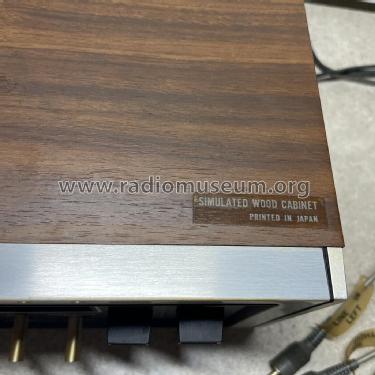

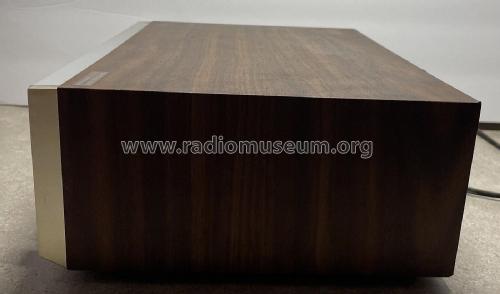

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.5 x 4.38 x 9.5 inch / 318 x 111 x 241 mm
Notes 8-Track (4 channel) Stereo Cardridge Record/Play Deck, one VU meter.
Price in first year of sale 110.00 $
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
