SC-666

SC-666; Panasonic, (ID = 2583069) Radio

SC-666; Panasonic, (ID = 2583070) Radio

SC-666; Panasonic, (ID = 2583071) Radio

SC-666; Panasonic, (ID = 2583072) Radio

SC-666; Panasonic, (ID = 2583073) Radio
SC-666; Panasonic, (ID = 2583091) Radio SC-666; Panasonic, (ID = 2583092) Radio
SC-666; Panasonic, (ID = 2583094) Radio SC-666; Panasonic, (ID = 2583068) Radio
Use red slider bar for more.
SC-666; Panasonic, (ID = 2583091) Radio
Panasonic,: SC-666 [Radio] ID = 2583091 1400x1802
Select picture or schematic to display from thumbnails on the right and click for download.
For model SC-666, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Panasonic Hi Fi Components, ca. 1970

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (80 W max.)
from Radiomuseum.org Model: SC-666 - Panasonic, Matsushita,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17.7 x 8.9 x 18.9 inch / 450 x 226 x 480 mm
Notes

The Panasonic model SC-666 is an AM/FM stereo system with built-in BSR MA65 4-speed record changer equipped with a Pickering V15 cartridge.

A pair of detachable 2-way speaker units, each containing an 8 inch woofer and a 2 inch tweeter, comes with the unit (dimensions : 11.4 x 17.4 x 8.4 inch, weight 11 lb).


Net weight (2.2 lb = 1 kg) 33 lb 0 oz (33 lb) / 14.982 kg

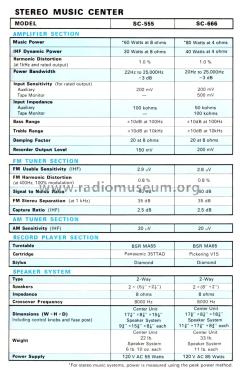

Mentioned in -- Original prospect or advert (Panasonic Hi Fi Components, ca. 1970)
Literature/Schematics (1) Radio College of Canada (RCC) (1972 Component Stereo #9)

Model page created by Tom Seeger. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2603 models, 2357 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
