- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148945
Original Prospekt

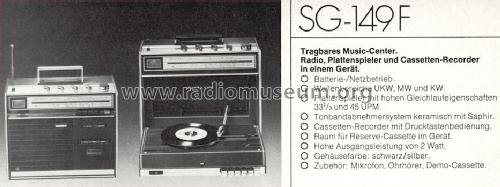

Original prospekt in 1973.

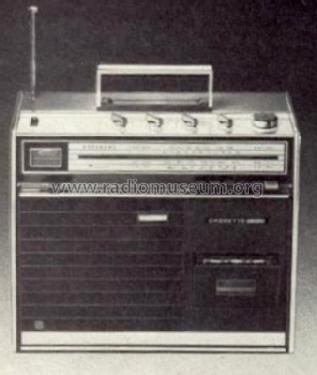

Original prospekt in 1973.

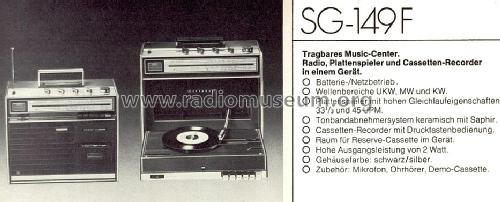

Original prospekt in 1972.
Aus Hersteller-Unterlagen
Scan aus techn. Unterlagen des Herstellers
Aus Service-Manual des Herstellers

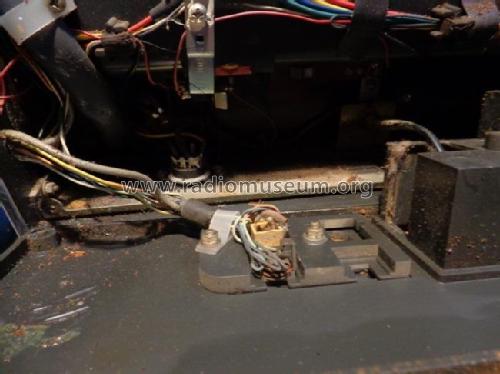

Aus Service-Manual des Herstellers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Line / Batteries (any type) / 110;220; 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

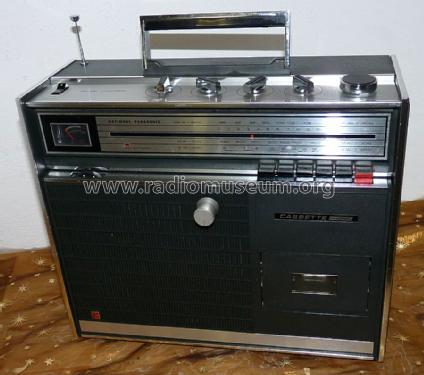

- Model: SG-149F - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 370 x 320 x 150 mm / 14.6 x 12.6 x 5.9 inch
- Notes

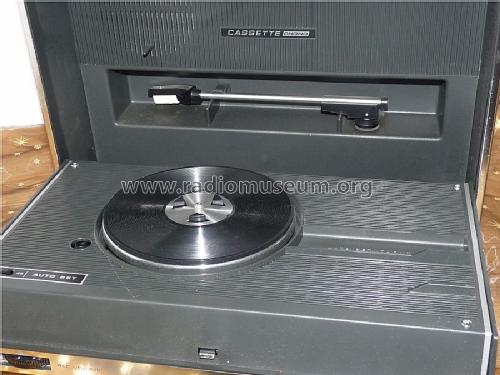

- Portables Music-Center: 3-Band-Radio, Plattenspieler (33 und 45 UpM) und Cassetten-Recorder.
Tonabnehmersystem keramisch mit Saphir.
Gehäusefarbe Schwarz/Silber.
Anschlüsse für Ohrhörer, Mikrofon und Fernbedienung.
100mm Breitband-LS und 60mm HT.
- Net weight (2.2 lb = 1 kg)
- 6.1 kg / 13 lb 7 oz (13.436 lb)
- Price in first year of sale
- 669.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
