SG-2070L

SG-2070L; Panasonic, (ID = 1951066) Radio

SG-2070L; Panasonic, (ID = 1951067) Radio
SG-2070L; Panasonic, (ID = 1628514) Radio SG-2070L; Panasonic, (ID = 518760) Radio
SG-2070L; Panasonic, (ID = 518755) Radio SG-2070L; Panasonic, (ID = 518756) Radio
SG-2070L; Panasonic, (ID = 518757) Radio SG-2070L; Panasonic, (ID = 518758) Radio
SG-2070L; Panasonic, (ID = 518759) Radio SG-2070L; Panasonic, (ID = 518761) Radio
SG-2070L; Panasonic, (ID = 518762) Radio
Use red slider bar for more.
SG-2070L; Panasonic, (ID = 1628514) Radio
Panasonic,: SG-2070L [Radio] ID = 1628514 800x652
Select picture or schematic to display from thumbnails on the right and click for download.
For model SG-2070L, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 46 W (unknown quality)
from Radiomuseum.org Model: SG-2070L - Panasonic, Matsushita,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 620 x 160 x 440 mm / 24.4 x 6.3 x 17.3 inch
Notes SG-2070L Stereo, four loudspeaker exits, tape recorder and players + record players (without change-over switch), Acrylic hoot
radio: SW 6 to 18 MHz, LW 150 to 280 kHz, MW 530 to 1600 kHz, UKW 88 to 108 MHz, AFC car, Stereo mono switch
cartridge: Car stop system, record level automatic controller with meter, input socket L/R MIC, Tape SELECT CrO2 and normal, counter record

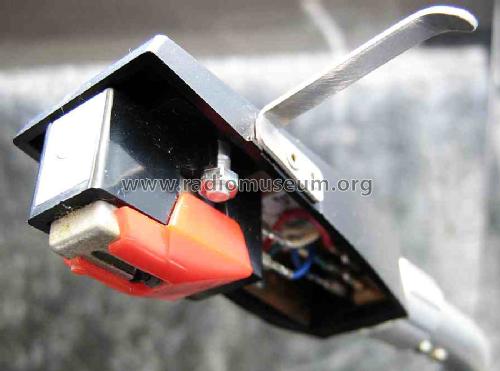

player: 33 and 45 Upm, Belt drive, AUTOMATIC Turntable
amplifier: 4 Speackers sockets, DIN AUX IN (100 kOhm), DIN PLAY/REC, Treble bass and balance automatic controller.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 1'300.00 DM
Source of data - - Data from my own collection
Mentioned in Funk-Technik (FT) (11/76 Seite 354)
Literature/Schematics (1) Funk-Technik (FT) (24/1975, S. 802 / Neuvorstellung)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
