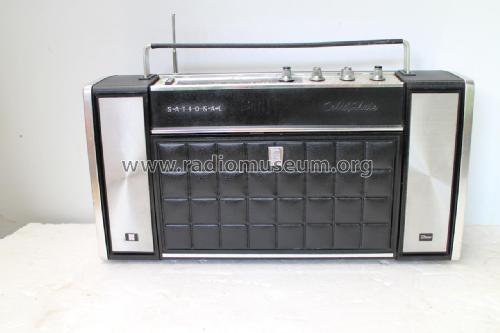

National 3 Band Radio Phonograph SG-765
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254031
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details

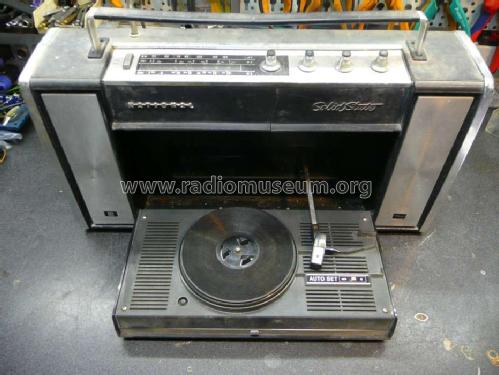

- Record Player (not changer)
- Power type and voltage
- Line / Batteries (any type) / 110; 200; 225; 250: / D: 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National 3 Band Radio Phonograph SG-765 - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 500 x 255 x 130 mm / 19.7 x 10 x 5.1 inch
- Notes
-
Frequency Range
MW: 525 - 1605 kHz
SW1: 2.7 - 7 MHz
SW2: 7 - 22 MHz
- Net weight (2.2 lb = 1 kg)
- 4.4 kg / 9 lb 11.1 oz (9.692 lb)
- Author
- Model page created by Petros Tsirvoulis. See "Data change" for further contributors.
