Slim-Line Cassettenrecorder RQ-2739

Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1034133) R-Player

Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1943071) R-Player

Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1943072) R-Player
Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1022251) R-Player Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1022252) R-Player
Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1022253) R-Player
Use red slider bar for more.
Slim-Line Cassettenrecorder RQ-2739; Panasonic, (ID = 1022251) R-Player
Panasonic,: Slim-Line Cassettenrecorder RQ-2739 [R-Player] ID = 1022251 933x700

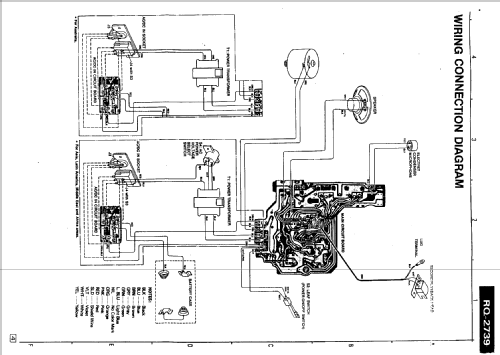

Select picture or schematic to display from thumbnails on the right and click for download.
For model Slim-Line Cassettenrecorder RQ-2739, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
This item used to be my datarecorder of Sinclair ZX-81.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1982 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Slim-Line Cassettenrecorder RQ-2739 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 139 x 48 x 259 mm / 5.5 x 1.9 x 10.2 inch
Notes • Slim-Line-Design
• Ein-Tasten-Aufnahmefunktion
• Mithormöglichkeit bei schnellem Vor- und Rücklauf
• „Quick RevLew“: direkte Umschaltmöglichkeit von Aufnahme-auf ReviewFunktion
• Bandzahlwerk
• Separate Lautstärke- und Klangregelung
• Automatische Bandendabschaltung
• Stromversorgung: Batterie 6V (4xUM-2), Netz 220V, Auto-/ BootsakkuAnschluß(über Adapterkabel RP-917; zusatzlich erhältlich)
• 700 mW Ausgangsleistung
• DIN-Anschlußbuchse
• Gehäusefarbe: schwarz/silber
• Zubehor: Netzkabel
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Source of data -- Original prospect or advert

Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
