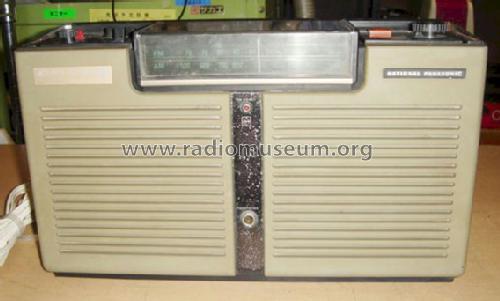

Sound Scope FM-AM-FM Stereo 8 Track RF-7100

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

  • Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220062

 Technical Specifications

  • Number of Transistors
  • 24
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Special Tape or Cassette-Format
  • Power type and voltage
  • Line / Batteries (any type) / 90-110 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Sound Scope FM-AM-FM Stereo 8 Track RF-7100 - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 355 x 195 x 105 mm / 14 x 7.7 x 4.1 inch
  • Notes
  • National-Panasonic Sound Scope FM-AM-FM Stereo 8 Track 1-IC 24-Transistor RF-7100 (Jap. domestic model);
    8 W power consumption.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
