• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1998 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 237406

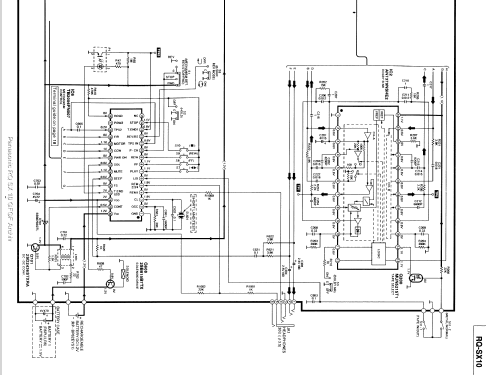

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage and/or dry batteries / 1 x 1.2 or 1x 1,5 AA Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.004 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Player RQ-SX10 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 109 x 75 x 20 mm / 4.3 x 3 x 0.8 inch

• Notes

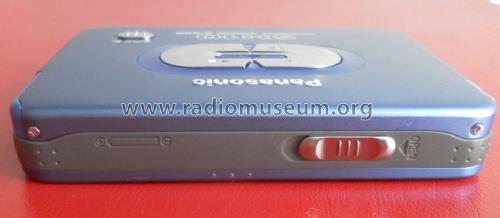

• Full metal case stereo cassette player. Made in Japan.

  Uses one rechargeable battery 1.2V ref. RP-BP61 or RP-BP62 or RP-BP80.
  AC 230V, 50Hz, 4W charger ref. RP-BC155AEY.
  Optionally it can use one 1.5V AA dry battery in an external attached case.

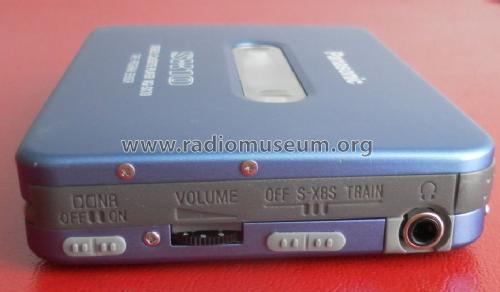

  Specs: Frequency 40Hz to 18KHz; Auto-reverse with tape program sensor; S-XBS bass system; Dolby NR-B.

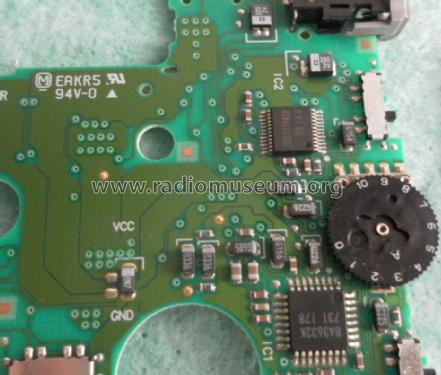

  IC's: BA3632K (Audio), AN7379NSH (Dolby NR-B), LB1978 (Motor Control), TB2006FN (Mechanism Control).



• Net weight (2.2 lb = 1 kg)
• 0.160 kg / 0 lb 5.6 oz (0.352 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
