Stereo Clock Radio RC-X230
Use red slider bar for more.

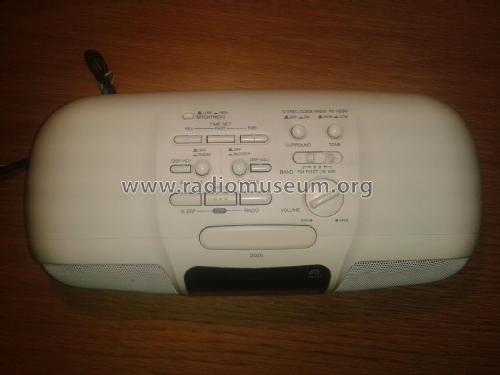

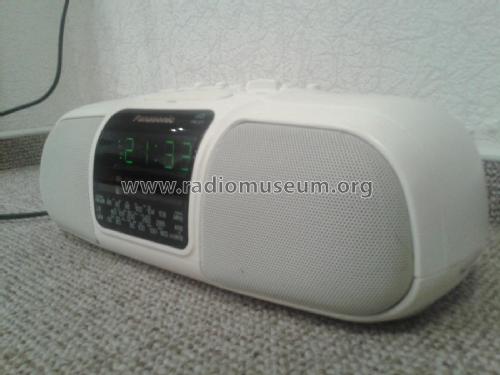

Panasonic,: Stereo Clock Radio RC-X230 [Radio] ID = 708530 933x433
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1987 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 5: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 230-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch |
| Power out | 3 W (unknown quality) |
| from Radiomuseum.org | Model: Stereo Clock Radio RC-X230 - Panasonic, Matsushita, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Dimensions (WHD) | 310 x 110 x 135 mm / 12.2 x 4.3 x 5.3 inch |
| Notes | Stereo Clock Radio mit 2 Alarm-Stufen. 4 LIN-ICs: AN7205 (FM-V, Front-End), LA1805 (AM/FM-Radio + Stereodecoder), TA8217P (2 x NF-E), LM8562 (Clock) Eingang für CD-Player oder ext. Komponenten, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, FM-Wurfantenne, Ferritantenne 10 cm, 9 Volt Blockbatterie zur Uhrzeiterhaltung bei Stromausfall erforderlich. |
| Net weight (2.2 lb = 1 kg) | 1.2 kg / 2 lb 10.3 oz (2.643 lb) |
Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
