Stereo Headphones RP-HV530

Stereo Headphones RP-HV530; Panasonic, (ID = 2000965) Speaker-P
Use red slider bar for more.
Stereo Headphones RP-HV530; Panasonic, (ID = 2000965) Speaker-P

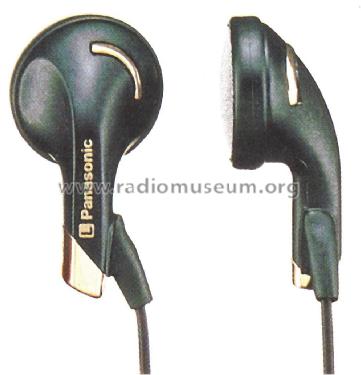

Panasonic,: Stereo Headphones RP-HV530 [Speaker-P] ID = 2000965 996x1033
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Headphones RP-HV530, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
aus Herstellerprospekt: Panasonic TV Video Audio 91/92, Seite 111

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1991 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - Is a Headphone or Earphone / Ø 1.6 cm = 0.6 inch
Power out
from Radiomuseum.org Model: Stereo Headphones RP-HV530 - Panasonic, Matsushita,
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes


Extrabass-System (XBS)16 mm-Lautsprecher, „Twist-free”-Kabel
Abgewinkelter 3,5 mm-Stecker mit 6,3 mm-Adapter(vergoldet)
Gewicht: 6g (ohne Kabel)
Transportbox und Schaumstoffkissen im Lieferumfang enthalten
Frequenzbereich 8 - 26.000 Hz
Impedanz: 16 Ohm
Empfindlichkeit: 104 dB/mW

Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Mentioned in -- Original prospect or advert

Model page created by Roland Müller. See "Data change" for further contributors.
