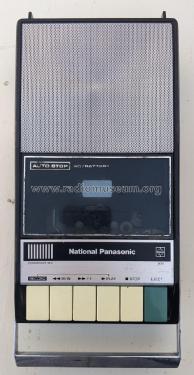

Panasonic RQ-309DS

Panasonic RQ-309DS; Panasonic, (ID = 2561840) R-Player Panasonic RQ-309DS; Panasonic, (ID = 2561841) R-Player
Panasonic RQ-309DS; Panasonic, (ID = 457017) R-Player Panasonic RQ-309DS; Panasonic, (ID = 457018) R-Player
Panasonic RQ-309DS; Panasonic, (ID = 457019) R-Player Panasonic RQ-309DS; Panasonic, (ID = 457022) R-Player
Use red slider bar for more.
Panasonic RQ-309DS; Panasonic, (ID = 2561840) R-Player
Panasonic,: Panasonic RQ-309DS [R-Player] ID = 2561840 795x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic RQ-309DS, Panasonic, Matsushita, National ナショナル (also tubes); Osaka: #497721465
Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1974 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line plus power jack, mostly with battery or storage battery / AC 120 / DC 6 / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Model: Panasonic RQ-309DS - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 140 x 70 x 260 mm / 5.5 x 2.8 x 10.2 inch

Panasonic Portable AC/Battery Tape Recorder Model RQ-309DS.
Auto Stop
Power Consumption 5 Watts.

Model page created by Franz Scharner. See "Data change" for further contributors.
