• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123184

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 / 10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

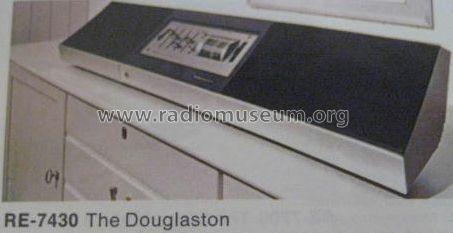

• Model: The Douglaston RE-7430 - Panasonic, Matsushita,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 7 x 7 inch / 305 x 178 x 178 mm

• Notes
• FM stereo, seperate 7" x 5" speakers, midnight black with silver trim, matching record changer type RD-7433 and carrying case RD-7430MC.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
