Panasonic,: The Orbitel TR-005 [Television] ID = 1050824 750x750

Select picture or schematic to display from thumbnails on the right and click for download.

For model The Orbitel TR-005, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay user mustanger 300591423843

Country:

Japan

Manufacturer / Brand:

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year: 1973

Category: Television Receiver (TV) or Monitor

Valves / Tubes

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle	Superheterodyne (common)
Wave bands	Wave Bands given in the notes.
Details
Power type and voltage	Alternating Current supply (AC) / 120 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org	Model: The Orbitel TR-005 - Panasonic, Matsushita,
Material	Plastics (no bakelite or catalin)
Shape	Miscellaneous shapes - described under notes.
Dimensions (WHD)	12 x 10 x 10 inch / 305 x 254 x 254 mm

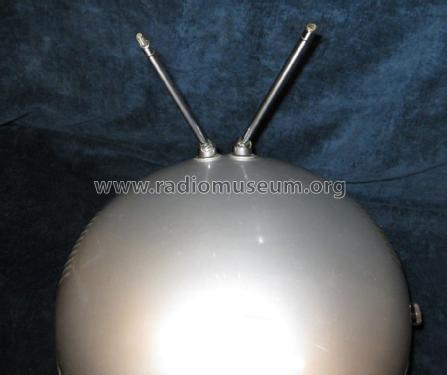

Notes	Panasonic TR-005, The Orbitel; 5" b/w TV with US standard VHF-/UHF tuner in pearl grey space ship cabinet design, bright chrome tripod foot, two built-in telescopic antennas, earphone jack. Differences to model TR-005C unknown.
Net weight (2.2 lb = 1 kg)	10 lb (10 lb 0 oz) / 4.540 kg
Literature/Schematics (1)	Photofact Folder, Howard W. SAMS

Model page created by a member from A. See "Data change" for further contributors.
