TR-1000E

TR-1000E; Panasonic, (ID = 1971107) TV Radio TR-1000E; Panasonic, (ID = 1971108) TV Radio
TR-1000E; Panasonic, (ID = 1971109) TV Radio TR-1000E; Panasonic, (ID = 1971110) TV Radio
TR-1000E; Panasonic, (ID = 1971111) TV Radio TR-1000E; Panasonic, (ID = 1971112) TV Radio
TR-1000E; Panasonic, (ID = 1971113) TV Radio TR-1000E; Panasonic, (ID = 1971114) TV Radio
Use red slider bar for more.
TR-1000E; Panasonic, (ID = 1971107) TV Radio
Panasonic,: TR-1000E [TV Radio] ID = 1971107 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-1000E, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TR-1000E - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 128 x 40 x 166 mm / 5 x 1.6 x 6.5 inch
Notes

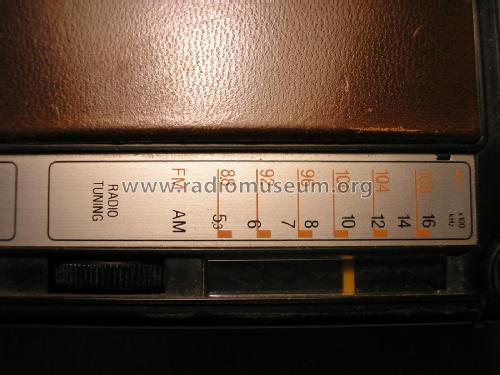

Wave bands:

FM:   88 - 108 MHz
AM: 530 - 1600 kHz
UHF:  21 - 69
VHF:   2 - 12

Model page created by Timo Rantasaari. See "Data change" for further contributors.
