TR-1200S

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 132817

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • 35
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220; 12 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 12 cm = 4.7 inch
  • Power out
  • 5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TR-1200S - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 326 x 643 x 321 mm / 12.8 x 25.3 x 12.6 inch
  • Notes

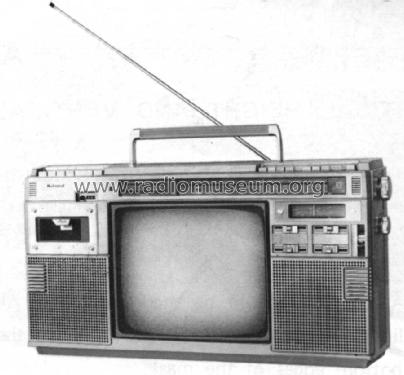

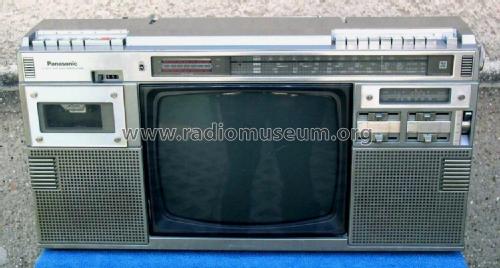

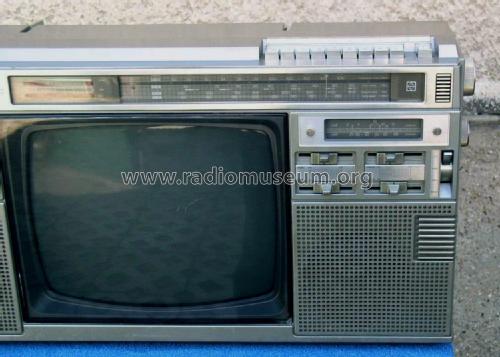

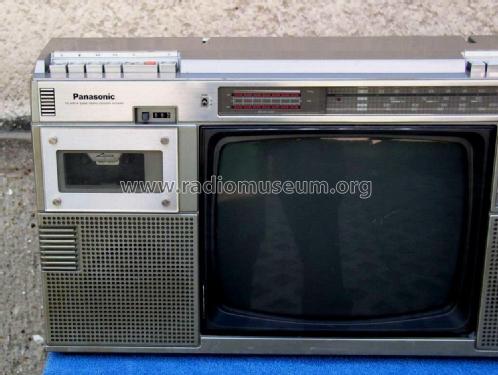

  • Panasonic TR-1200S, TV with 4-band / stereo cassette recorder "Ghettoblaster";
    ~29 cm b/w TV with CCIR B/G standard electronic VHF-/UHF tuner, LW, SW, MW & stereo FM radio, LED stereo VU meter, tape counter, beat osc. switch, built-in mic, built-in telescopic antenna, jacks for ext. antennas, mic-in, remote, RCA line-in, RCA line-out, ext. 8 ohm speakers, 6.3 mm phones jack, ext. 12 V jack.
    50/19 watts power consumption.
  • Net weight (2.2 lb = 1 kg)
  • 12.7 kg / 27 lb 15.6 oz (27.974 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
