TR-475 EU

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 145808

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • 40
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Other, details in remarks or not known. / 220/ 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TR-475 EU - Panasonic, Matsushita,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 300 x 135 x 395 mm / 11.8 x 5.3 x 15.6 inch
  • Notes
  • National TR-475 EU;
    14 cm b/w TV with CCIR standard B/G VHF & UHF tuner, AM-MW/FM radio, retractable TV, earphones jack, ext. in antenna, silver/black colored, quick start at mains power operation, 3.5h accu TV/40h radio operation, 10h charging time, sold with 2 accu, combined external mains power supply/charger and earphones, optional 12 V car cabel TY-192, accu pack and timer.
  • Net weight (2.2 lb = 1 kg)
  • 6.8 kg / 14 lb 15.6 oz (14.978 lb)
  • Price in first year of sale
  • 698.00 DM
  • Mentioned in

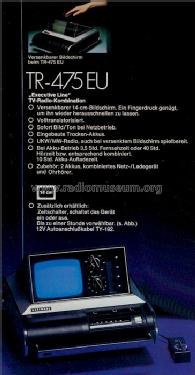

  • -- Original prospect or advert ((D) National Gesamtprogramm Frühjahr/Sommer 1973)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
