TR-5030G

TR-5030G; Panasonic, (ID = 2625256) Television TR-5030G; Panasonic, (ID = 2625257) Television

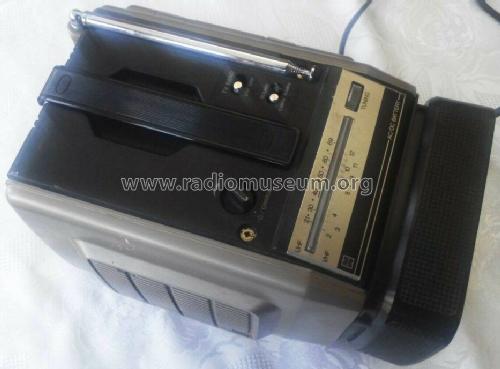

TR-5030G; Panasonic, (ID = 2625258) Television TR-5030G; Panasonic, (ID = 2625259) Television
TR-5030G; Panasonic, (ID = 2625260) Television
Use red slider bar for more.
TR-5030G; Panasonic, (ID = 2625256) Television
Panasonic,: TR-5030G [Television] ID = 2625256 933x840
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-5030G, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
ebay UK auction item_184685887191 seller 7tman

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1978 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1.5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TR-5030G - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Panasonic TR-5030G Battery 5" b/w portable TV with switchable CCIR standard B/G/I (5.5 or 6 MHz UK sound) VHF & UHF tuner, built-in rod antenna and ext. IEC antenna in, screen shield, supplied with 240 V AC Adaptor type TY-175G.

Model page created by a member from A. See "Data change" for further contributors.
