TR-545

TR-545; Panasonic, (ID = 991030) TV Radio TR-545; Panasonic, (ID = 991031) TV Radio
TR-545; Panasonic, (ID = 991032) TV Radio TR-545; Panasonic, (ID = 991033) TV Radio
Use red slider bar for more.

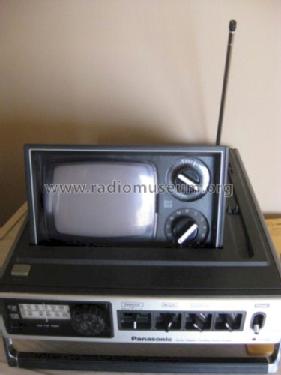

TR-545; Panasonic, (ID = 991030) TV Radio
Panasonic,: TR-545 [TV Radio] ID = 991030 375x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-545, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
sayco20 280671337402

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1979 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 120; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TR-545 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12 x 5.5 x 13.5 inch / 305 x 140 x 343 mm
Notes Foldout b/w TV with US standard VHF-/UHF tuner, earphone jack, car power cord type TY-173P.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
