TR-602EU

TR-602EU; Panasonic, (ID = 1393680) Television TR-602EU; Panasonic, (ID = 1393689) Television
TR-602EU; Panasonic, (ID = 1393693) Television TR-602EU; Panasonic, (ID = 1393694) Television
Use red slider bar for more.

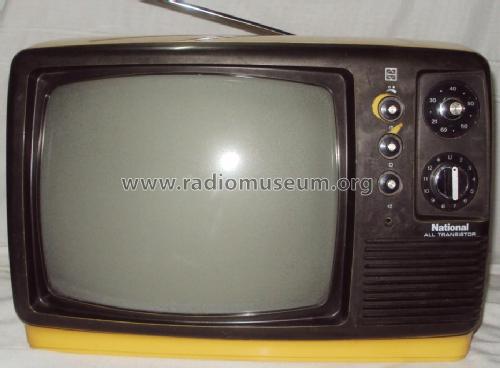

TR-602EU; Panasonic, (ID = 1393680) Television
Panasonic,: TR-602EU [Television] ID = 1393680 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-602EU, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
J_National_TR-602EU_jpg

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (undistorted)
from Radiomuseum.org Model: TR-602EU - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 415 x 280 x 295 mm / 16.3 x 11 x 11.6 inch
Notes National TR-602EU;
~29 cm b/w TV with CCIR B/G VHF turret & UHF dial tuner, 33/16 W power consumption.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
