• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1998 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 300980

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

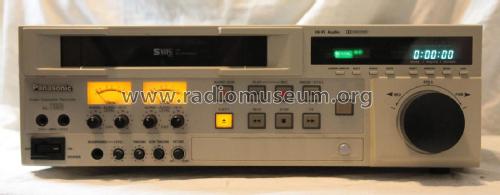

• Model: Video Cassette Recorder AG-7350-B/E - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 423 x 143 x 395 mm / 16.7 x 5.6 x 15.6 inch

• Notes

• Audio Specifications:
  Audio Line In/Hi-Fi (Phono x 2) : -8dBv, 47k ohms, unbalanced
  Audio Line In/Normal (Phono x 2) : -8dBv, 47k ohms, unbalanced
  Headphone Jack Output : -60dBv ~ -20dBv, 8 ohms, unbalanced
  Audio Frequency Response : 20Hz-20kHz (Hi-Fi Audio); 50Hz-12kHz (Normal)
  Audio Line Input(s)/Output(s) (No., Connector, Level) : -8dBv, 600 ohms, unbalanced
  Audio Signal-to-Noise Ratio : 48dB (Dolby NR On; Normal)
  Audio Tracks : 2 tracks (Hi-Fi Audio); 2 tracks (Normal)
  Dynamic Range : 90dB (Hi-Fi Audio)
  FF/REW Time : Approx. 3 min with NV-T120
  Mic Input (Connector, Level) : -60dBv, 4.7k ohms, unbalanced
  Modulation System : Luminance: FM azimuth recording
  Recording Time : 120 min. (2 hrs.) with NV-T120
  Signal-to-Noise Ratio (Video) : 46dB (color)
  Tape Format : S-VHS/VHS tape
  Tape Speed : SP: 1-5/16 ips (33.35 mm/sec.)
  Power Consumption : 48 Watts
  Power Requirements : 240VAC +10%, 50/60Hz

  ---

  Fernbedienbar mit der Kabelfernbedienung AG-A600-E

  Der Unterschied von AG-7350-B zu AG-7350-E besteht darin, dass die Geräte in verschiedene Länder mit verschiedenen Verpackungen und Netzkabeln ausgeliefert wurden.
  Technisch gibt es dagegen keine Unterschiede.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bartosz Szwed. See "Data change" for further contributors.
