• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222599

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

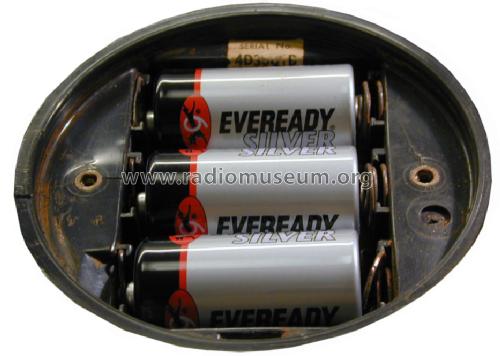

• Dry Batteries / 3 x 1,5 UM2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Water Proof Marine 1 RF-622 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 175 x 210 x 90 mm / 6.9 x 8.3 x 3.5 inch

• Notes
• National-Panasonic RF-622 Water Proof Marine 1 made for the Japanese market only with freq AM 525-1605 kHz and FM 76-90 MHz, Hi/Lo tone, carrying strap, battery compartment water proof, AIR VALVE.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.

• Other Models

• Here you find 3002 models, 2778 with images and 628 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
