Panda 熊猫 B734 creme
Use red slider bar for more.

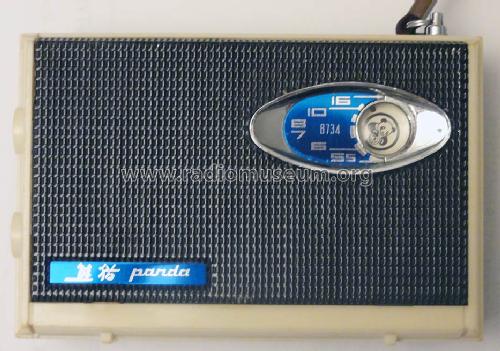

Nanjing 熊猫电子集团: Panda 熊猫 B734 [Radio] ID = 762772 933x519
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Panda 熊猫 B734 [creme] - Nanjing 熊猫电子集团 Nanjing |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 100 x 63 x 35 mm / 3.9 x 2.5 x 1.4 inch |
| Notes | The Panda model B734 has on its left side a socket for external 3 V and one for headphones. On the right side there ara tuning wheel and below the volume wheel. There seem to be 5 black transistors plus two power transistors between the two transformers - with a round metal case (783A?). The Panda B734 was at least available in creme and green. We will create a model page for each color. |
| Net weight (2.2 lb = 1 kg) | 0.185 kg / 0 lb 6.5 oz (0.407 lb) |
| External source of data | Gift from Mr. Wu Jundong, March 29, 2010, Shanghai |
Model page created by Ernst Erb. See "Data change" for further contributors.
