Xiongmao 熊猫 B-802 blue scale

Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 778411) Radio

Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 778412) Radio

Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 778413) Radio

Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 778414) Radio
Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 769159) Radio Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 425858) Radio

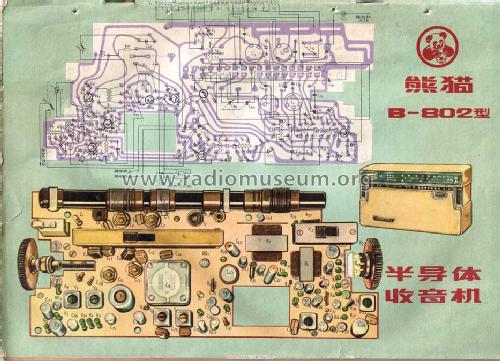

Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 425862) Radio Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 769641) Radio
Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 425860) Radio Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 778415) Radio
Use red slider bar for more.
Xiongmao 熊猫 B-802; Nanjing 熊猫电子集团 (ID = 769159) Radio
Nanjing 熊猫电子集团: Xiongmao 熊猫 B-802 [Radio] ID = 769159 933x751
Select picture or schematic to display from thumbnails on the right and click for download.
For model Xiongmao 熊猫 B-802 blue scale, Nanjing 熊猫电子集团 Nanjing Panda Electronics Group Co, Ltd. (PEG); Nanjing:
Copyright by 'zjian', taken from www 5bcl com. Would be glad to enter a courtesy remark but I could not find out the owner.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 熊猫电子集团 Nanjing Panda Electronics Group Co, Ltd. (PEG); Nanjing
Year: 1963–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 3AG23 3AG24 3AG21 3AG21 3AX24 3AX24 3AX22 3AX22 2AP3 2AP9
Main principle Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Xiongmao 熊猫 B-802 [blue scale] - Nanjing 熊猫电子集团 Nanjing
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 119 x 48 mm / 8.7 x 4.7 x 1.9 inch
Notes The model Panda / Xiongmao 熊猫 B-802 was manufactured during 1963 to 1982 with about 46 million sets made (info from He Yuqi, Beijing) - with a slightly falling price (from 205 to 195 yuan). The transistor line up of the first models is 3G1C, 3G1D, 3G1A, 3G1A, 1G2D, 1G2D, 1G2B and 1G2B instead of the listed (then) more modern transistors. 8 germanium transistors, two diodes. See the two antenna systems, broadcast coil and telescopic rod antenna for SW. 208-1 has a plastic tip. The bands are broadcast, SW 3.9 to 9 MHz and 9 to 18 MHz. Tuning indicator (tuning meter) on model B-802 but not on B-802-1. The tuned circuits consist of two RF circuits - each 3 bands with separate coils, 1 IF transformer with a special regulation for fine tuning with two tuned circuits and two normal IF transformers with each having one only tuned - in total 6 tuned circuits for all bands. Push-pull output. Socket for ear phone on the left side, two sockets for external antenna on the right side. Two switches at the rear.

See also the same set under the brand XIONGMAO which is Pin Yin for Panda - and the separate follower models, 熊猫 B-802-1. There are export versions and domestic versions. We distinguish also the different scale colors like "near white", pink-red, blue etc. But we don't differ the different colors (red or white) of the station finder (finger) or antenna tip. The blue scale seems to be the most common. Please look up the right version when uploading pictures. In 1963 the Nanjing Radio Factory used the first time transistors for short wave.

See more information about the Panda 802 family.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

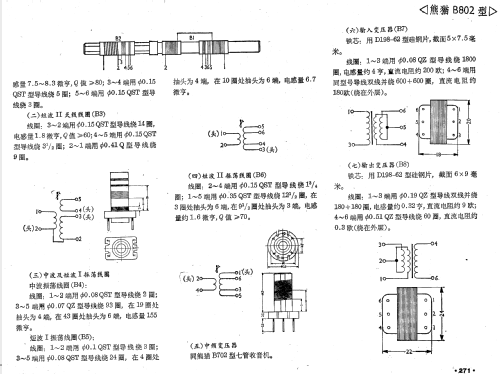

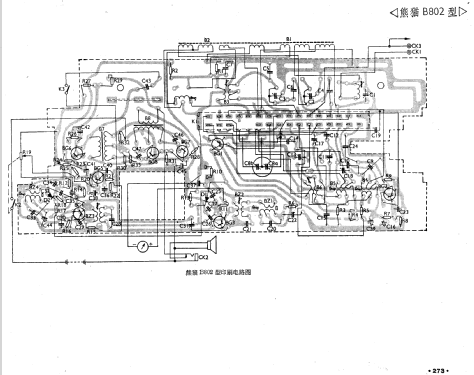

Literature/Schematics (1) 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 270 - also in the first print from 1972 - all models are on the same place.)

Model page created by Ernst Erb. See "Data change" for further contributors.
